For a given application, choosing the appropriate servo motor is essential to ensure maximum performance, economy, and efficiency. Because they provide exact control over torque, speed, and angular position, servo motors are crucial components of automation and control systems. However, it might be challenging to choose the best servo motor type for your requirements with so many alternatives available.

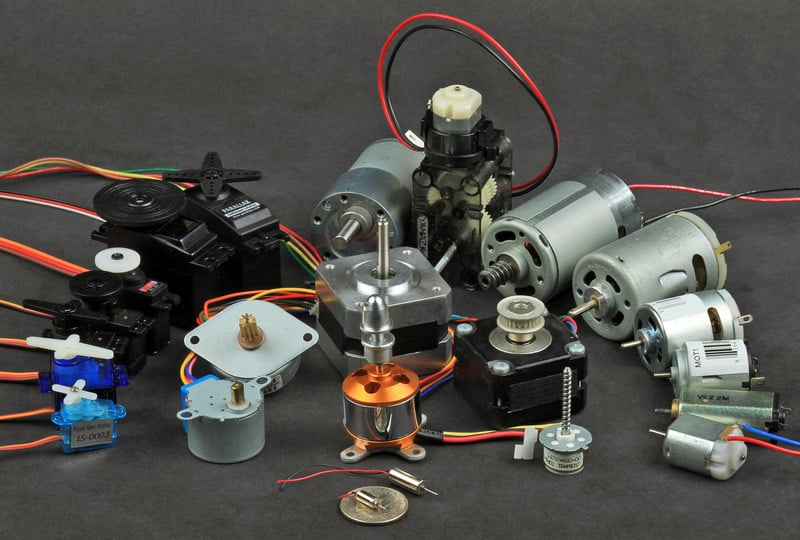

how to choosing Servo Motors

Size and Form Factor

Temperature, humidity, dust, and chemical exposure are some of the variables that might impact the motor’s longevity and performance. The motor needs to fit into the available space in your machinery or device, which may be constrained by design. Additionally, the weight and inertia of the motor can affect system dynamics and performance.

  • Compact Motors: If space is limited, selecting a smaller, more compact motor may be necessary.
  • Larger Motors: Larger motors may be required for higher torque applications but can result in increased weight and cost.

Make sure to select a motor that balances size, weight, and performance to avoid design compromises.

Motor Type

Choosing the right kind of servo motor for your application is the first thing you’ll need to decide. Stepper motors, DC motors, and AC motors are the three primary varieties of servo motors. However, within the AC motor category, you will find both synchronous and asynchronous (induction) servo motors, each with its advantages.

  • DC Servo Motors: When a lot of torque is required at low speeds, these are perfect. DC motors are often used in smaller, low-power applications.
  • AC Servo Motors: AC motors are used for industrial applications due to their lifetime and efficiency, including:
    Synchronous Servo Motors: These motors run at a steady speed and are perfect for precise jobs that need reliable operation.
    Asynchronous (Induction) Servo Motors: These motors have a slightly lower efficiency than synchronous motors but are cost-effective and robust, suitable for general-purpose applications.

The choice between DC and AC, and between synchronous and asynchronous motors, depends on the application’s power requirements, precision, and budget constraints.

Load Requirements

The nature of the load is one of the most important considerations when selecting a servo motor. A load can be either constant or variable, and its characteristics will dictate the type of motor that should be used.

  • Constant Load: If the load remains constant, such as in a fixed-speed conveyor belt, an asynchronous or synchronous motor may be appropriate.
  • Variable Load: If the load fluctuates or changes over time, such as in a robotic arm, a motor with higher dynamic performance, like a synchronous motor, may be necessary to maintain constant speed and torque.

The servo motor’s torque and speed capabilities should be matched to the load’s requirements. This includes considering the peak torque (maximum torque the motor can handle) and the continuous torque (the torque the motor can sustain for extended periods).

Speed and Torque Requirements

Speed and torque are two fundamental parameters that determine the performance of a servo motor. When choosing a servo motor, it is essential to assess both the speed (in revolutions per minute, or RPM) and torque (in Newton meters, or Nm) required for your application.

  • Speed: The motor should be capable of providing the desired speed under load. This is especially important for applications like CNC machines, robotics, and conveyor belts, where precise control over speed is necessary.
  • Torque: Torque is the force that drives the motor’s rotation. Depending on the load, you need a motor that can deliver both the peak and continuous torque required. Servo motors come with different torque ratings, so selecting the right one is critical to avoid under or overloading the motor.

A good approach is to calculate the required torque and speed before selecting a motor, ensuring that it meets both the dynamic and static demands of the application.

Precision and Control Requirements

The ability of servo motors to precisely adjust position, speed, and torque is one of their biggest advantages. When choosing a servo motor, the level of precision required by your application is a key factor.

  • High-Precision Applications: For applications like robotics, CNC machines, or any system requiring fine positioning, a synchronous servo motor may be the best option. These motors operate without slip, offering constant speed and high precision even under varying load conditions.
  • General-Purpose Applications: For applications where high precision is not required, an asynchronous (induction) motor may be sufficient. These motors can still provide good performance, but their speed may vary slightly under load due to slip.

Consideration should also be given to the motor’s feedback mechanism. To give feedback on the motor’s location, servo motors usually use encoders or resolvers. A higher-resolution feedback system will provide more precise control over the motor’s movements.

Control System Compatibility

Servo motors are part of a larger control system, and compatibility between the motor and the controller is crucial. The most common control methods used with servo motors are:

  • Pulse Width Modulation (PWM): PWM control is commonly used with DC servo motors and is a simple way of adjusting the power supplied to the motor by varying the duty cycle of a square wave.
  • Vector Control: For AC motors, vector control (also known as field-oriented control, or FOC) allows for precise control over both torque and flux. This is particularly crucial for applications that need to run smoothly and efficiently.

The motor’s voltage, current, and communication interface should all work with the control system. Many modern servo motors offer advanced features such as EtherCAT or Modbus communication protocols, which enable real-time control over networks in industrial automation settings.

Environmental Considerations

The operating environment plays a vital role in selecting a servo motor. Temperature, humidity, dust, and chemical exposure are some of the variables that might impact the motor’s longevity and performance.

  • Temperature: Servo motors are rated for specific operating temperatures. If your application involves extreme temperatures, such as in ovens or cold storage, you may need a motor designed for those conditions.
  • Humidity: For environments with high humidity, like food processing plants or outdoor installations, a IP-rated motor (Ingress Protection) that is sealed against moisture may be necessary.
  • Harsh Environments: In industrial settings where there’s exposure to dust, debris, or chemicals, motors with robust seals and protective coatings may be required to ensure they continue to operate reliably.

Choosing a servo motor with an appropriate IP rating (e.g., IP65 for dust-tight and water-resistant) can help extend the motor’s service life.

Cost and Budget

Cost is always an essential consideration when selecting a servo motor. While high-precision and high-performance motors often come with a higher upfront cost, they can provide long-term savings through increased efficiency, reliability, and reduced maintenance costs.

When evaluating cost, you should also consider:

  • Installation Costs: Some motors may require additional components like gearboxes, encoders, or special wiring.
  • Maintenance Costs: Motors with more complex designs or that require frequent calibration may have higher maintenance costs over time.
  • Energy Efficiency: A motor’s energy efficiency can impact operating costs in the long run, especially in high-duty cycle applications.

Choosing the right servo motor involves a detailed analysis of the application’s requirements, including load type, speed, torque, precision, control systems, environmental factors, and budget. By understanding the performance characteristics of both asynchronous and synchronous motors, a servo motor manufacturer can help you make an informed decision, ensuring efficiency and longevity.
