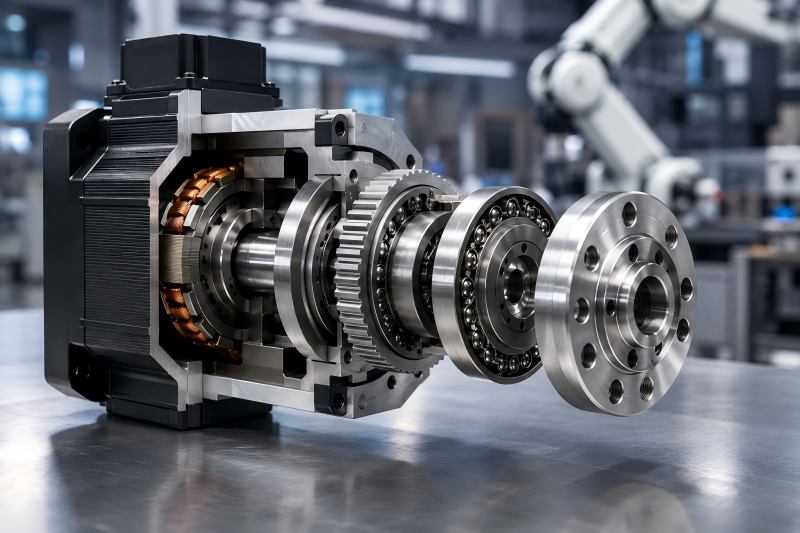

A harmonic gear motor is a compact precision drive system that combines a motor with a harmonic gear reducer. It is designed to deliver high torque, high reduction ratio, low backlash, and accurate motion control in a small space. Harmonic gear motors are widely used in robotics, automation equipment, aerospace systems, medical devices, semiconductor machinery, optical instruments, and other applications that require precise positioning.

Unlike traditional gearboxes that use multiple rigid gears, a harmonic gear system uses elastic deformation to transmit motion. This special working principle allows it to achieve very high gear reduction in a compact structure while maintaining excellent positioning accuracy.

What Is a Harmonic Gear Motor?

A harmonic gear motor usually includes two main parts:

Electric motor

The motor provides rotational power. It can be a servo motor, stepper motor, brushless DC motor, or other precision motor.

Harmonic gear reducer

The reducer slows rotation while boosting output torque. It also improves control accuracy by reducing backlash.

In simple terms, the motor generates speed, while the harmonic gear reducer converts that speed into controlled torque and precise movement.

For example, if a motor rotates at high speed but the application needs slow and accurate movement, a harmonic gear reducer can reduce the speed while greatly increasing torque. This makes the system ideal for robot joints, rotary tables, positioning axes, and compact automation modules.

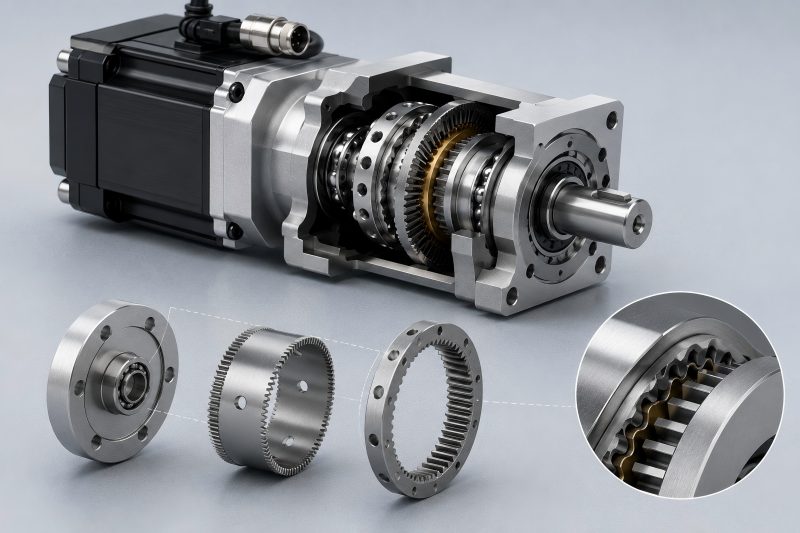

Main Components of a Harmonic Gear Motor

A harmonic gear motor has a different structure from a standard planetary gear motor or spur gear motor. The core harmonic drive usually includes three key parts: the wave generator, flex spline, and circular spline.

Component	Function	Main Feature
Wave Generator	Creates elliptical deformation inside the flex spline	Drives the motion transmission
Flex Spline	Thin, flexible cup-shaped gear with external teeth	Deforms elastically during operation
Circular Spline	Rigid internal gear ring for tooth engagement.	Contains more teeth than the flex spline.
Motor	Provides input rotation	Servo, stepper, BLDC, or other motor type
Output Shaft	Transfers reduced speed and increased torque	Connects to load or mechanism

How Does a Harmonic Gear Motor Work?

A harmonic gear motor works through controlled elastic gear deformation. Inside the harmonic gear reducer, the wave generator is installed inside the flex spline. The elliptical wave generator rotates, reshaping the flex spline continuously.

The flex spline engages the circular spline at two sides, and the tooth count gap creates slow reverse rotation. This difference in tooth count creates gear reduction.

Example: with 202 circular spline teeth and 200 flex spline teeth, one wave generator rotation shifts only two teeth, creating compact high-ratio reduction.

Step-by-Step Working Process

The Motor Provides Input Rotation

The electric motor rotates the input shaft. This rotation is transferred directly to the wave generator. In many precision applications, the motor speed is controlled by a servo driver or motion controller.

The Wave Generator Deforms the Flex Spline

The wave generator keeps the flex spline in controlled elastic motion, allowing it to bend repeatedly without losing its original shape.

Gear Teeth Engage at Two Opposite Points

Flex spline teeth mesh with the circular spline in two areas, spreading the load and improving torque transfer efficiency.

Tooth Difference Creates Speed Reduction

Because the flex spline and circular spline have a small tooth number difference, the output motion becomes much slower than the input motion. This produces a high reduction ratio.

Output Torque Increases

As speed decreases, torque increases. This allows a small motor to drive heavier loads with better control.

Why Does a Harmonic Gear Motor Have Low Backlash?

One major advantage of a harmonic gear motor is very low backlash.

Backlash refers to the small gap or looseness between gear teeth. In precision motion systems, backlash can cause positioning errors, vibration, poor repeatability, and unstable movement.

Harmonic gear motors reduce backlash because many teeth are engaged at the same time and the flex spline is elastically preloaded against the circular spline. This creates tight tooth contact and improves motion accuracy.

This is why harmonic gear motors are commonly used in robot arms, precision rotary stages, inspection equipment, and high-accuracy automation systems.

Key Advantages of Harmonic Gear Motors

Harmonic gear motors are popular because they combine compact size with strong performance.

Advantage	Explanation	Benefit for Users
High Reduction Ratio	Large speed reduction in one stage	Compact drive design
Low Backlash	Tight gear engagement	Better positioning accuracy
High Torque Density	Strong torque in a small body	Suitable for compact machines
Good Repeatability	Stable output motion	Better control performance
Smooth Operation	Continuous elastic gear engagement	Lower vibration and smoother motion
Lightweight Structure	Fewer gear stages required	Useful for robots and mobile systems

Common Reduction Ratios

Harmonic gear motors provide large reduction in one compact stage. Common ratios include 30:1, 50:1, 80:1, 100:1, 120:1, and 160:1, depending on the design.

Higher reduction reduces speed while increasing torque. However, it may also affect efficiency, response speed, and allowable input speed. Therefore, the correct ratio should be selected based on the load, speed requirement, torque requirement, and positioning accuracy.

Harmonic Gear Motor vs Traditional Gear Motor

Harmonic gear motors are commonly compared with other gearbox motor types. Each type has its own advantages, but harmonic gear motors are usually preferred when precision and compact design are important.

Item	Harmonic Gear Motor	Planetary Gear Motor	Worm Gear Motor
Backlash	Very low	Low to medium	Medium
Reduction Ratio	Very high in one stage	Medium to high	Medium to high
Torque Density	High	High	Medium
Efficiency	Medium to high	High	Lower to medium
Size	Very compact	Compact	Larger for same precision
Precision	Excellent	Good	Moderate
Typical Use	Robotics, automation, aerospace	Industrial drives, automation	Conveyors, lifting devices

Where Are Harmonic Gear Motors Used?

Robotics

Robot joints require compact size, high torque, and precise movement. Harmonic gear motors are widely used in collaborative robots, industrial robot arms, humanoid robots, service robots, and medical robots.

Their low backlash helps robot arms move accurately and repeat positions reliably.

Automation Equipment

In factory automation, harmonic gear motors are used in rotary tables, indexing mechanisms, pick-and-place systems, inspection machines, and precision assembly equipment.

They help improve motion stability and reduce positioning errors.

Aerospace and Defense

Aerospace systems often require lightweight, compact, and reliable drive solutions. Harmonic gear motors can be used in satellite mechanisms, antenna positioning systems, radar equipment, and precision control devices.

Medical Devices

Medical equipment often needs smooth, quiet, and accurate movement. Harmonic gear motors can be used in surgical robots, imaging systems, laboratory automation, rehabilitation equipment, and precision adjustment mechanisms.

Semiconductor Equipment

Semiconductor manufacturing requires extremely accurate motion control. Harmonic gear motors are suitable for wafer handling, inspection stages, positioning modules, and precision rotation systems.

Advantages and Limitations

Harmonic gear motors provide excellent precision, but they are not the best choice for every application.

They are ideal when the system requires compact size, low backlash, and accurate motion. However, compared with some standard gear motors, they may have higher cost and may require more careful selection for shock load, continuous high-speed operation, or harsh environments.

For simple conveying, low-cost rotation, or applications that do not need high precision, a standard gear motor may be more economical. But for robotics, precision automation, and high-end motion control, a harmonic gear motor is often a better solution.

Conclusion

A harmonic gear motor integrates a motor with a precision harmonic reducer. It works by using a wave generator to elastically deform a flex spline, allowing it to mesh with a circular spline and create high gear reduction.

The main benefits of harmonic gear motors include low backlash, compact size, high torque density, smooth motion, and excellent positioning accuracy. These features make them widely used in robotics, automation equipment, aerospace systems, medical devices, semiconductor machinery, and precision instruments.

When selecting a harmonic gear motor, buyers should consider torque, speed, reduction ratio, backlash, load type, installation space, control method, and service life. The right harmonic gear motor can improve machine accuracy, reduce vibration, save space, and support stable long-term operation.
