Because of their efficiency, high torque density, and small size, planetary gear motors are widely employed in many different industries. However, one common issue is difficulty in starting these motors, which can affect their reliability and performance. In order to guarantee a smooth launch, this article investigates the root causes of the issue and offers workable remedies.

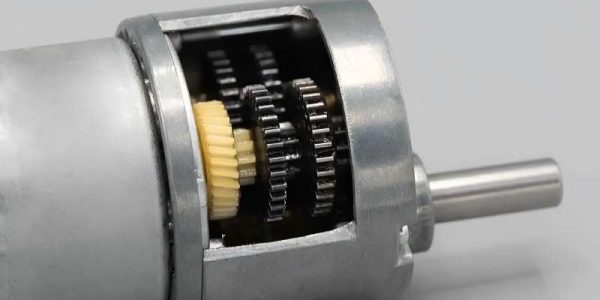

Solution to the Problem of Difficulty in Starting a Planetary Gear Motor

Understanding the Starting Problem in Planetary Gear Motors

Starting issues in planetary gear motors can arise due to various factors, often categorized into electrical, mechanical, environmental, and installation-related problems. Determining suitable solutions requires an understanding of these elements.

Electrical Issues:

  • Low Voltage Supply: Motors require adequate voltage to overcome initial inertia. An undersupplied motor will struggle to start.
  • Insufficient Current: Even if the voltage is correct, insufficient current can prevent the motor from generating the torque required for startup.
  • Faulty Components: Issues with windings, capacitors, or connections can disrupt the power flow.

Mechanical Issues:

  • Excessive Load: Overloading the motor can cause it to stall during startup.
  • Damaged Gears or Bearings: Internal wear or misalignment can increase resistance.
  • Inadequate Lubrication: Poor lubrication leads to higher friction, making it harder for the motor to start.

Environmental Factors:

  • Temperature Extremes: Excessive heat can damage motor windings, while cold environments can cause lubrication to thicken, increasing resistance.
  • Contaminants: Dust, dirt, or moisture can interfere with the motor’s components.

Design and Installation Issues:

  • Undersized Motor: A motor that is too small for the application may not provide sufficient torque for startup.
  • Improper Alignment: Misaligned shafts can create additional stress on the motor.
  • Faulty Gear Assembly: Errors during assembly can lead to internal resistance or gear failure.

Step-by-Step Solutions

To address the difficulty in starting a planetary gear motor, it’s essential to diagnose the root cause. Here are effective solutions based on the common causes:

Electrical Solutions

Problem Solution
Insufficient power supply Verify voltage and current; upgrade power source if needed.
Poor wiring connections Inspect and tighten loose connections.
Faulty motor windings Test windings for continuity and replace damaged ones.
  • Verify Power Supply: Verify that the motor is getting the proper voltage and current. An underpowered motor will struggle to start. Using a multimeter, confirm the supply matches the motor’s specifications.
  • Upgrade Circuit Components: Replace undersized wires, relays, or breakers to ensure the motor receives adequate power.

Mechanical Solutions

Problem Solution
Excessive load Reduce load or use a higher-capacity motor.
Stuck or damaged components Inspect and repair or replace damaged gears.
Improper lubrication Apply the correct lubricant and check for contaminants.
  • Reduce Load: If the motor is overloaded, distribute the load evenly or reduce it. Consider moving to a motor with a higher torque rating as an alternative.
  • Inspect Gear Components: Disassemble the gearbox to identify damaged or stuck components. Clean and replace as necessary.
  • Lubricate Properly: To minimize friction and guarantee smooth operation, use the lubricant that the manufacturer recommends.

Environmental Solutions

Problem Solution
Extreme operating temperatures Install cooling or heating systems as needed.
Dust or debris Clean motor and gearbox; consider sealing components.
  • Maintain Optimal Temperature: Check to make sure the motor operates within the specified temperature range. In severe weather, use heating pads or external cooling fans.
  • Keep Clean: Regularly clean the motor and gearbox to remove dust or debris. Consider using sealed or IP-rated enclosures for harsh environments.

Design and Installation Solutions

Problem Solution
Incorrect motor sizing Use a motor that matches the application requirements.
Misalignment Realign motor and load to reduce stress on components.
Defective planetary gear assembly Replace or repair defective components.
  • Choose the Right Motor: Choose a motor that has sufficient speed and torque for the specified use. Consider consulting a motor manufacturer for assistance.
  • Ensure Proper Alignment: Misalignment between the motor and load can cause uneven stress and starting issues. Use alignment tools to ensure accuracy.

Preventive Measures to Avoid Starting Problems

Preventing starting difficulties involves proactive maintenance and monitoring. Here are some best practices:

Regular Maintenance

  • Plan recurring examinations to spot possible problems like deterioration, misalignment, or electrical malfunctions.
  • Components should be cleaned and lubricated for best performance.

Implement Monitoring Systems

  • Install sensors to track voltage, current, temperature, and vibration levels.
  • Make use of the data gathered from these sensors to spot issues early on and fix them.

Training and Documentation

  • Train personnel on proper motor operation and maintenance.
  • Keep thorough records of all maintenance, replacements, and repairs.

Case Study: Resolving Startup Issues in a Factory Setting

A manufacturing plant experienced frequent startup problems with its planetary gear motors used in conveyor systems. Upon investigation, the following issues were identified:

Cause:

  1. The motors were operating under excessive loads.
  2. Lubrication was insufficient, leading to increased friction.
  3. The shafts were misaligned due to improper installation.

Solutions Implemented:

  1. Redistributed the load across multiple motors to reduce strain.
  2. Introduced an automatic lubrication system for consistent application.
  3. Used laser alignment tools to ensure precise alignment.

Results:

  1. Downtime was reduced by 50%.
  2. Motor lifespan increased due to reduced wear and tear.
  3. Efficiency improved, resulting in cost savings.

Comparison Chart: Common Causes and Solutions

Cause Symptom Solution
Insufficient power supply Motor struggles or fails to start Upgrade power source or wiring.
Excessive load Motor stalls during startup Reduce load or upgrade motor.
Faulty motor windings Overheating or no startup Test and replace faulty windings.
Improper lubrication Increased friction and noise Use proper lubricant and clean contaminants.
Misalignment Vibration and uneven wear Realign motor and load.
Environmental factors Frequent overheating or jamming Control temperature and clean components.

Difficulty in starting a planetary gear motor is a multifaceted issue that requires a systematic approach to resolve. By addressing electrical, mechanical, environmental, and design-related factors, you can ensure reliable performance and prevent future problems.

You must select the appropriate motor for your application, carry out regular maintenance, and install it correctly to achieve the greatest results. Partnering with a trusted Planetary Gear Motor manufacturer can further ensure that your motor operates efficiently and reliably for years to come.
