Brushless DC (BLDC) motors have become a cornerstone in modern engineering, offering high efficiency, reliability, and performance for a wide range of applications. They are popular in everything from electric vehicles to drones, robotics, and home appliances. While BLDC motors are highly efficient compared to traditional brushed motors, they can be classified into two main types based on their control mechanisms: Sensored and Sensorless motors.

What is the type of Brushless DC Motor?

The challenge in operating BLDC motors is determining the position of the rotor to synchronize the switching of stator windings. The two main varieties of BLDC motors are the answer to this:

• Sensored BLDC Motors: These motors use sensors to determine the rotor’s position.
• Sensorless BLDC Motors: These motors use back electromotive force (back-EMF) signals for rotor position detection.

Sensored BLDC Motors

Sensored BLDC motors are equipped with position sensors, typically Hall effect sensors, that provide feedback to the motor controller regarding the rotor’s exact position. These sensors, which are fixed to the stator, pick up on the rotor’s magnetic field. The motor controller uses this information to accurately synchronize the commutation process, thereby improving control, especially at low speeds.

How Sensored BLDC Motors Work

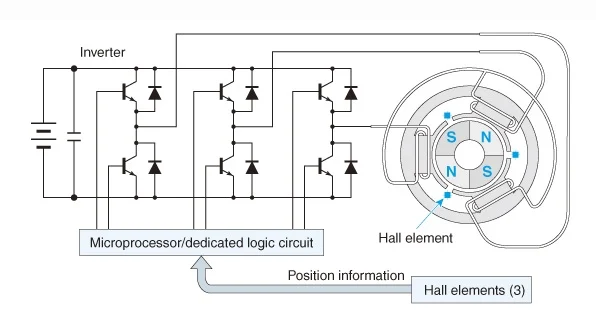

Hall effect sensors are placed at various locations throughout the stator to monitor the magnetic field from the rotor. These sensors generate a signal that indicates the precise position of the rotor, allowing the controller to determine when to activate the windings. The feedback provided by these sensors ensures that the motor runs smoothly, even at very low speeds, and provides excellent torque control.

Advantages of Sensored BLDC Motors

• Smooth Low-Speed Performance: Sensored motors provide consistent and smooth performance at low speeds, making them ideal for applications like robotics and electric vehicles, where precise control is crucial.
• Efficient Start-Up: Sensored motors can start up easily and smoothly without the need for initial rotor movement.Especially useful for applications that need to start and stop frequently.
• Reliable Operation Under Load: Since the sensors provide continuous position feedback, the motor controller can apply the appropriate amount of current, resulting in efficient torque production.

Disadvantages of Sensored BLDC Motors

• Increased Complexity and Cost: The addition of Hall effect sensors increases the motor’s complexity and overall cost. It also requires more wiring and connections.
• Potential for Sensor Failure: Hall sensors are susceptible to damage due to vibration, high temperature, or electrical interference, which can affect motor performance.
• Limited Use in High-Speed Applications: The accuracy of Hall sensors tends to decrease at very high speeds, which can make them unsuitable for high-speed motor applications.

Applications of Sensored BLDC Motors

• Electric Vehicles (EVs): Sensored motors are used in EVs to provide consistent torque and precise control, especially at low speeds.
• Robotics: Precision in movement is critical for robotics, making sensored BLDC motors a preferred choice.
• CNC Machines: In CNC and other precision equipment, the ability to control speed and torque accurately is essential, and sensored motors are well-suited for these requirements.

Sensorless BLDC Motors

Sensorless BLDC motors do not have physical sensors to determine rotor position. Instead, they rely on the measurement of back-EMF—a voltage generated in the motor windings when the rotor moves through the magnetic field. The motor controller uses this back-EMF to control commutation and identify the rotor position.

How Sensorless BLDC Motors Work

Each coil produces a back-EMF in proportion to the rotor speed while the motor rotates. The controller monitors the back-EMF in each winding and uses the information to determine the timing for switching the windings. This method works well as long as the rotor is spinning, but it presents challenges at very low speeds or during startup.

Advantages of Sensorless BLDC Motors

• Simpler and Lower Cost: Sensorless motors do not require additional sensors, reducing the motor’s cost and complexity.
• Increased Reliability: Without physical sensors, there is less risk of sensor failure, making these motors more reliable in high-temperature or high-vibration environments.
• High-Speed Applications: Sensorless control performs well at high speeds, as back-EMF signals are easier to read and more accurate when the rotor speed is high.

Disadvantages of Sensorless BLDC Motors

• Difficult Start-Up: Sensorless motors struggle to determine rotor position at zero or low speed due to the absence of a back-EMF signal, which can lead to inefficient or failed startups.
• Less Accurate Low-Speed Performance: Since back-EMF is minimal at low speeds, the accuracy of rotor position detection is compromised, resulting in poor performance.
• Complex Control Algorithm: Sensorless control algorithms are more complicated and require advanced techniques to estimate rotor position during operation accurately.

Applications of Sensorless BLDC Motors

• Fans and Pumps: Sensorless motors are well-suited for applications like fans and pumps where high speed and efficiency are crucial, and startup performance is less critical.
• Drones and Model Aircraft: In these applications, high-speed operation and reduced weight are more important than low-speed precision, making sensorless motors an ideal choice.
• Industrial Applications: Many industrial systems, such as blowers and compressors, can use simpler, more cost-effective sensorless motors.

Comparison: Sensored vs. Sensorless Motors

The following table provides a detailed comparison between sensored and sensorless BLDC motors:

Feature	Sensored BLDC Motors	Sensorless BLDC Motors
Cost	Higher due to sensors	Lower, no sensors needed
Startup Reliability	Excellent	Challenging
Low-Speed Performance	Smooth operation	Prone to cogging
Design Complexity	More complex	Simpler
Environmental Suitability	Limited in harsh conditions	High durability in tough environments
Energy Efficiency	Moderate	High
Applications	Robotics, precision machinery	Fans, pumps, industrial drives

Choosing Between Sensored and Sensorless BLDC Motors

The particular needs of the application must be taken into account while deciding between sensored and sensorless BLDC motors.

• Precision and Low-Speed Control: If your application requires precise control, especially at low speeds, such as in robotics, CNC machines, or electric vehicles, sensored BLDC motors are the best choice. The feedback provided by the sensors ensures that the motor runs smoothly and provides adequate torque under varying conditions.
  High-Speed Performance and Cost Efficiency: For applications that involve high-speed operation, such as drones, model aircraft, and fans, sensorless BLDC motors are often preferable. These motors are more reliable due to their simpler construction, with fewer components that could fail.
• Environmental Considerations: If the motor will be used in a harsh environment where sensors might get damaged (e.g., due to high temperature or vibration), sensorless motors are more robust, as they don’t rely on external sensors that could fail under such conditions.
• Start-Stop Operations: Applications with frequent start-stop operations, like electric vehicles or certain robotics, benefit significantly from sensored BLDC motors because of their ability to start up under load without hesitation.
• Cost Constraints: If cost is a primary concern, sensorless motors are generally more economical due to the absence of additional sensors and wiring. This makes them a cost-effective choice for high-speed applications that don’t require precise control at low speeds.

Future Trends in BLDC Motor Technology

As technology continues to advance, the gap between sensored and sensorless BLDC motors is narrowing. Emerging algorithms and improvements in microcontroller technology are allowing sensorless motors to achieve smoother startups and better low-speed performance. These advances mean that sensorless control might become suitable for more applications that traditionally require sensored solutions.

Another trend is the integration of sensor fusion, where advanced software compensates for the weaknesses of sensorless designs by using other inputs to predict rotor position. Machine learning and adaptive control algorithms are also being developed to make sensorless control even more precise.

Conclusion

Sensored motors provide superior performance in terms of smooth low-speed operation, torque control, and reliability in demanding conditions. Custom BLDC motors can further enhance these characteristics by tailoring the design to specific application requirements, such as optimizing the placement and type of sensors or adjusting the winding configurations to achieve precise torque and speed characteristics. However, they are more complex and costly due to the use of sensors and the added customization processes.

On the other hand, sensorless motors are simpler, more reliable, and less expensive, with customization options often focusing on improving back EMF detection and enhancing controller algorithms to mitigate their challenges at low speeds and during startup. Custom sensorless BLDC motors can be designed to maximize efficiency and robustness in harsh environments, making them ideal for cost-sensitive and industrial applications.

The choice between these two types of motors—and whether to invest in a custom BLDC motor—ultimately depends on the specific needs of the application, such as cost, precision, operational speed, and environmental conditions. By understanding the key differences and opportunities for customization outlined in this article, engineers and hobbyists can select the appropriate motor type and design, ensuring optimal performance and efficiency tailored to their project’s unique demands.

Suggested Next Steps

• Explore Real-World Applications: Consider testing sensored and sensorless motors in real-world scenarios to understand the nuances of their performance.
• Advanced Controllers: Look into advanced controllers that can bridge the gap between sensored and sensorless control, especially those implementing sensor fusion techniques.
• Simulation Tools: Utilize motor simulation tools to model and compare the performance of both motor types in specific applications before making a selection.
