When it comes to choosing the right gear motor for your application, planetary gear motors and spur gear motors are two of the most common options. Each has unique benefits and works well for particular jobs. Making an informed choice can be aided by being aware of how they differ in terms of design, functionality, performance, and applications. This article provides an in-depth comparison of planetary gear motors and spur gear motors to help you select the right solution for your needs.
What Are Planetary Gear Motors?
In planetary gear motors, a ring gear encloses a central gear (sun gear) that is encircled by several smaller gears (planet gears). A small, effective system with high torque and accuracy is produced by the planet gears rotating around the sun gear and engaging with the ring gear.
Key Features:
- High torque-to-size ratio.
- Compact and durable design.
- Suitable for high-torque and low-speed applications.
Applications:
- Robotics, industrial machinery, medical devices, and aerospace systems.

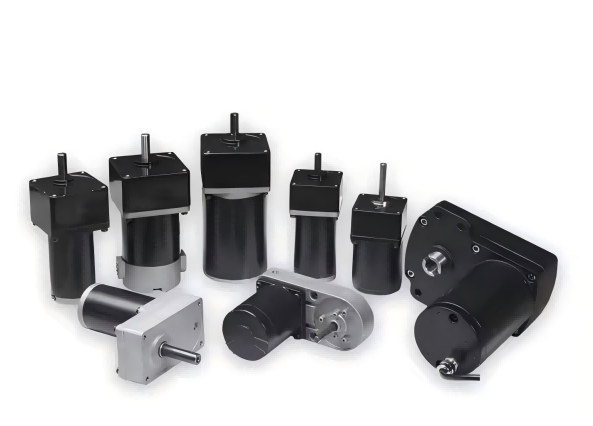

What Are Spur Gear Motors?
Spur gear motors use straight-cut teeth that are mounted on parallel shafts. Power and torque are transferred from one shaft to another by the teeth meshing. For many purposes, they are more affordable than planetary systems because of their simpler construction.
Key Features:
- Simple and straightforward design.
- Effective for moderate torque and speed requirements.
- Simple to create and maintain.
Applications:
- Conveyor systems, agricultural gear, and light-duty equipment.
Comparison of Planetary Gear Motors and Spur Gear Motors
Design and Construction
Aspect | Planetary Gear Motors | Spur Gear Motors |
Gear Arrangement | Sun gear, planet gears, and ring gear in a compact system. | Parallel shafts with straight-cut teeth. |
Complexity | More complex, requiring precision manufacturing. | Simpler design, easier to manufacture. |
Size | Compact for high torque output. | Larger for the same torque output. |
Insights:
- Space-constrained applications benefit greatly from the efficiency and compactness of planetary gear motors.
- Spur gear motors are simpler and more cost-effective, especially for straightforward designs.
Torque and Load Capacity
Aspect | Planetary Gear Motors | Spur Gear Motors |
Torque Output | High torque due to multiple gear contacts. | Moderate torque limited by single-tooth engagement. |
Load Distribution | Load evenly distributed among multiple planet gears. | Load concentrated on one gear pair at a time. |
Efficiency under Load | Maintains efficiency under high load conditions. | Efficiency decreases under heavy loads. |
Insights:
- Planetary gear motors handle heavy loads and high torque demands better than spur gear motors.
Speed and Efficiency
Aspect | Planetary Gear Motors | Spur Gear Motors |
Speed Reduction | High reduction ratios in a compact design. | Lower reduction ratios; requires multiple stages for high reduction. |
Efficiency | Slightly lower due to additional friction in complex systems. | High efficiency in simple designs. |
Insights:
- Spur gear motors are more efficient for moderate-speed, light-load applications, while planetary gear motors excel in high-reduction, high-torque scenarios.
Noise and Vibration
Aspect | Planetary Gear Motors | Spur Gear Motors |
Noise Level | Quieter due to better load distribution. | Louder due to straight-cut teeth. |
Vibration | Minimal vibration due to balanced design. | Higher vibration levels at high speeds. |
Insights:
- For noise-sensitive applications, planetary gear motors are the preferred choice.
Durability and Maintenance
Aspect | Planetary Gear Motors | Spur Gear Motors |
Durability | Highly durable with even load distribution. | Less durable under high stress. |
Maintenance | Requires skilled maintenance due to complexity. | Easy to maintain and repair. |
Insights:
- Planetary gear motors are more robust for demanding environments, while spur gear motors offer ease of maintenance.
Cost
Aspect | Planetary Gear Motors | Spur Gear Motors |
Initial Cost | Higher due to precision manufacturing. | Lower due to simpler design. |
Long-term Value | Cost-effective for high-performance applications. | Best for budget-friendly, less demanding uses. |
Insights:
- Spur gear motors are ideal for cost-sensitive projects, whereas planetary gear motors provide better value for performance-critical applications.
Key Differences at a Glance
The following chart summarizes the major differences between planetary and spur gear motors:
Feature | Planetary Gear Motors | Spur Gear Motors |
Torque Capacity | High | Moderate |
Efficiency | Slightly lower in complex systems | High in simple designs |
Noise | Low | High |
Durability | High | Moderate |
Size | Compact | Larger for same torque output |
Maintenance | Complex | Simple |
Cost | High initial cost | Lower initial cost |
Application Scenarios
When to Choose Planetary Gear Motors
- High Torque Applications: Industrial machinery, robotics, and automotive systems require high torque output, making planetary gear motors ideal.
- Space Restrictions: Applications with restricted space, such medical gadgets or drones, are ideal for compact designs.
- Precision Needs: Planetary systems offer precise motion control for tasks like CNC machining or positioning systems.
When to Choose Spur Gear Motors
- Budget-Conscious Projects: Their simpler design makes them cost-effective for light-duty tasks.
- Moderate Torque and Speed Requirements: Ideal for conveyor systems, agricultural machinery, or small machinery.
- Ease of Maintenance: Their straightforward design is easy to repair and maintain, making them suitable for less demanding environments.
Case Study: Choosing Between Planetary and Spur Gear Motors
Scenario: A manufacturing company needs motors for two separate applications:
- High-Precision Robotics: Requires high torque and compact design.
- Conveyor Belt System: Needs moderate torque at an affordable cost.
Solution:
- For the robotics application, a planetary gear motor is selected due to its precision, compact size, and ability to handle high torque.
- For the conveyor system, a spur gear motor is chosen for its cost-effectiveness and sufficient torque capacity.
Result: The company achieved optimal performance and cost savings by selecting the appropriate motor type for each application.
Conclusion
You can select between planetary gear motors and spur gear motors based on the requirements of your application. Planetary gear motors are the go-to choice for high-torque, precision, and compact designs, while spur gear motors excel in cost-sensitive, moderate-duty applications. You can guarantee the greatest performance and value for your project by being aware of each one’s advantages and disadvantages.
