Stepper motors are crucial in various industrial, commercial, and robotics applications, thanks to their precision and reliable control over position and speed. Among the different types of stepper motors, three of the most widely used are the Permanent Magnet Stepper Motor (PM Stepper), the Hybrid Stepper Motor, and the Variable Reluctance Stepper Motor (VR Stepper). Understanding the key differences, advantages, and ideal applications for each type can help you select the right motor for your specific needs.

Permanent Magnet Stepper Motor

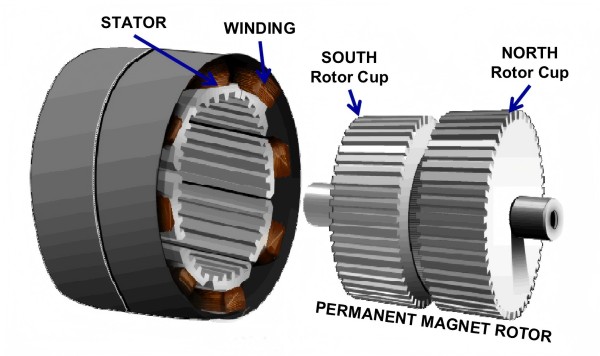

Permanent Magnet Stepper Motor (PM Stepper)

The rotor of the Permanent Magnet Stepper Motor is equipped with permanent magnets. When powered, the stator’s windings produce a magnetic field that causes the rotor, which has a permanent magnet, to line up with the field. These motors are renowned for providing good torque at low speeds and for being easy to use and reasonably priced.

Key Characteristics

  • Rotor: Permanent magnet rotor.
  • Torque: Provides high torque at low speeds but tends to lose torque at higher speeds.
  • Cost: Generally less expensive than hybrid and VR stepper motors.
  • Accuracy: Suitable for applications that require moderate precision and low-speed operations.
  • Complexity: Simple design, making it easier and cheaper to manufacture.

Advantages

  • Low Cost: Ideal for budget-sensitive applications.
  • High Torque at Low Speeds: Excellent for low-speed operations, making it suitable for tasks like printers and small CNC machines.
  • Simplicity: Fewer components and less complexity lead to lower maintenance and longer lifespan.

Applications

  • Printers
  • CNC machines (low-end models)
  • Textile machinery
  • Small robots

Hybrid Stepper Motor

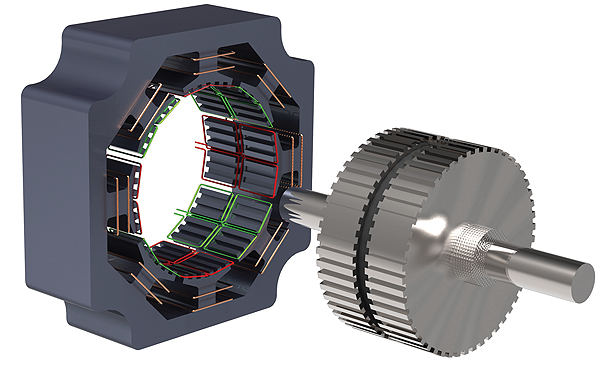

Hybrid Stepper Motor

A hybrid stepper motor combines the technologies of variable resistance and permanent magnetism. The rotor typically has both a permanent magnet and a multi-tooth structure, allowing it to take advantage of both high torque and high precision. This hybrid design improves performance and reduces some of the drawbacks of traditional PM or VR motors.

Key Characteristics

  • Rotor: A toothed iron rotor in conjunction with permanent magnets.
  • Torque: Provides significantly higher torque than PM stepper motors and better efficiency.
  • Precision: Improved precision and smoother operation compared to PM stepper motors.
  • Efficiency: Better at managing heavier loads and more efficient at faster speeds.
  • Complexity: More complex than PM stepper motors due to the hybrid rotor design.

Advantages

  • High Torque and Precision: Perfect for applications that need precision positioning and great torque.
  • Smooth Operation: Smoother operation and less vibration than PM stepper motors.
  • Versatility: Can handle a wider range of applications, from low-speed precision control to high-speed operations.

Applications

  • 3D printers
  • CNC machines (high-precision models)
  • Robotics
  • Automated assembly lines

Variable Reluctance Stepper Motor (VR Stepper)

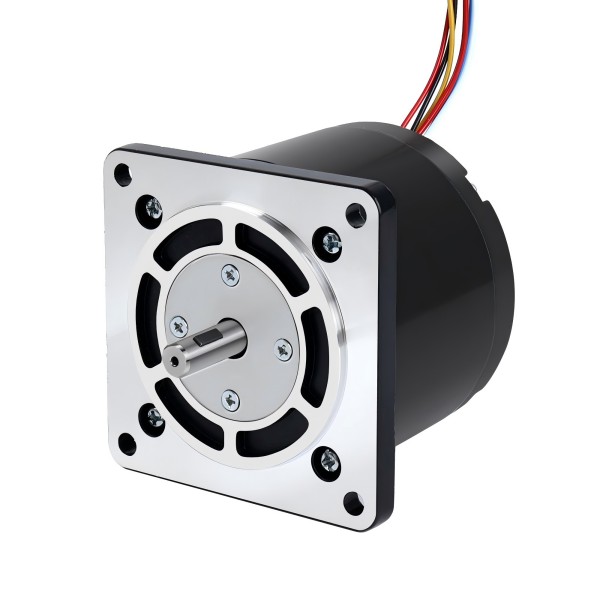

Variable Reluctance Stepper Motor (VR Stepper)

The Variable Reluctance Stepper Motor operates on the principle of reluctance, where the rotor is made of soft iron and does not contain permanent magnets. The resistance of the rotor to align with the energized stator coils determines the rotor’s position. This type of stepper motor is known for its simplicity, but it also tends to produce less torque than PM or Hybrid motors.

Key Characteristics

  • Rotor: Soft iron rotor without permanent magnets.
  • Torque: Less torque, particularly at low speeds, than PM and hybrid stepper motors.
  • Cost: Typically lower cost than Hybrid stepper motors.
  • Precision: Suitable for less precise applications, with more vibration and noise.
  • Efficiency: Less efficient than hybrid designs, especially at high speeds.

Advantages

  • Simplicity: A simpler design with fewer components, leading to lower production costs.
  • Cost-Effective: Perfect for uses where high torque is not essential and affordability is a key factor.
  • Good for High-Speed Applications: Performs better at higher speeds than PM stepper motors due to less magnetic drag.

Applications

  • Basic automation tasks
  • Positioning in low-load applications
  • Low-cost consumer devices
  • Simple robotics

Comparison Summary

Feature Permanent Magnet Stepper Motor Hybrid Stepper Motor Variable Reluctance Stepper Motor
Rotor Permanent magnet rotor Permanent magnet + multi-tooth rotor Soft iron rotor without magnets
Torque High at low speeds High at both low and high speeds Lower, especially at low speeds
Precision Moderate precision High precision and smoother motion Lower precision, more vibration
Cost Low Moderate Low
Efficiency Lower at high speeds Higher efficiency at higher speeds Less efficient than hybrid motors
Complexity Simple More complex Simple
Applications Low-cost, low-precision applications High-precision, versatile applications Cost-sensitive, basic applications

Which Motor Should You Choose?

The necessary torque, speed, accuracy, cost, and efficiency are just a few of the variables that determine which stepper motor is best for your application.

Permanent Magnet Stepper Motors (PM Stepper)

Best for: Low-cost, low-precision applications where simplicity is key.

When to choose:

  • Low-speed operations: PM stepper motors excel at providing high torque at low speeds. They’re ideal for simple systems that don’t require high-speed performance.
  • Budget-sensitive projects: They are one of the most cost-effective stepper motor types, making them suitable for applications where price is a significant consideration.
  • Simple and reliable tasks: If your application doesn’t require precise positioning but simply needs reliable operation at low speeds, the PM stepper motor is a good choice.

Examples of applications:

  • Small printers
  • Basic CNC machines
  • Low-cost automation
  • Simple robotics

Limitations:

  • Reduced torque at higher speeds
  • Limited precision compared to hybrid motors
  • Less efficient at high speeds

Hybrid Stepper Motors

Best for: High-torque, high-precision applications that require smooth motion and versatility.

When to choose:

  • Applications requiring high precision: Hybrid stepper motors offer both high torque and great precision by combining the best qualities of variable reluctance and permanent magnet motors. They are perfect for uses where accurate placement and seamless functioning are essential.
  • Versatility: If your application requires the motor to handle both low and high-speed operations efficiently, the hybrid stepper motor is an excellent choice.
  • Moderate budget: While more expensive than PM stepper motors, hybrid stepper motors strike a balance between performance and cost, making them suitable for medium-range budgets.

Examples of applications:

  • 3D printers
  • CNC milling and lathes
  • Robotics and automation
  • High-precision positioning systems

Advantages:

  • It provides higher torque and smoother operation than PM stepper motors
  • Better performance at higher speeds
  • Suitable for both low and high-speed precision tasks

Limitations:

  • More expensive than PM stepper motors
  • More intricate manufacturing and design procedures

Variable Reluctance Stepper Motors (VR Stepper)

Best for: High-speed, cost-effective applications where precision and torque are less critical.

When to choose:

  • High-speed applications: VR stepper motors perform better at higher speeds compared to PM stepper motors. If your application involves rapid motion with lower torque demands, VR stepper motors can be ideal.
  • Cost-effective solutions: When you don’t require the precision of a hybrid or PM motor but still need a reliable custom stepper motor for high-speed tasks.
  • Less precision required: If you don’t need high precision or smoothness of motion, and torque is not the primary concern, VR stepper motors can be a good choice, especially in simpler systems.

Examples of applications:

  • Basic automation systems
  • Low-cost consumer devices
  • Simple robots
  • Positioning in simple, non-critical applications

Advantages:

  • Simple design and cost-effective
  • Performs well at high speeds
  • Lower maintenance due to the simplicity of the design

Limitations:

  • Lower torque and precision than PM and hybrid stepper motors
  • More vibration and noise during operation
  • Less efficient at lower speeds

By understanding the unique strengths of each motor type, you can select the one that best fits your specific application requirements, whether it’s for cost-efficiency, high performance, or speed.
