The best motor for a compact lawnmower is not automatically the smallest, lightest, or most powerful option. It is the motor that meets cutting requirements while allowing the complete machine to remain balanced, cool, durable, and easy to use.

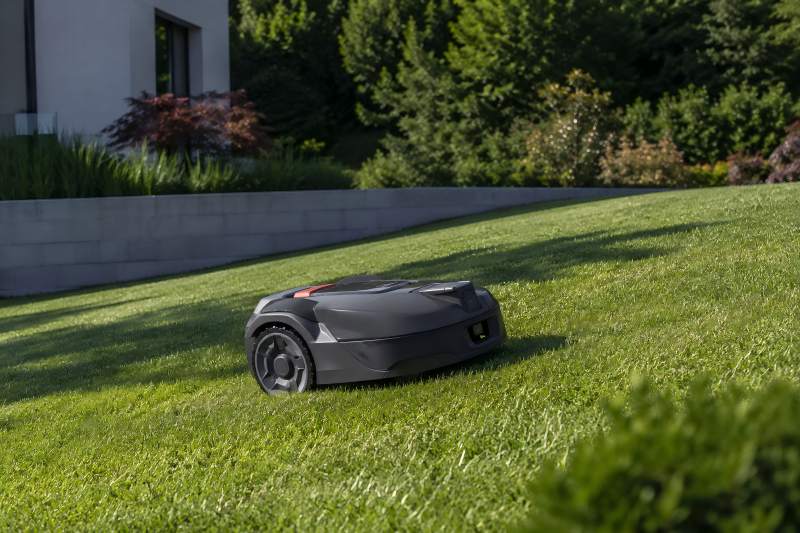

For robotic lawnmowers, reducing motor mass can improve runtime and maneuverability, but insufficient torque may reduce cutting consistency. For compact push mowers, additional power can improve performance in dense grass, yet the related battery and structural mass may reduce portability.

Motor size and weight should therefore be treated as system variables. Blade inertia, battery capacity, deck stiffness, cooling, traction, noise, and service access must be considered together.

Practical Motor Ranges for Early Design

The following figures are illustrative engineering ranges for concept development rather than fixed standards. Final motor selection should be confirmed through cutting, temperature, and durability tests.

Compact Mower Type	Cutting Width	Illustrative Blade Motor Power	Motor Mass Target	Main Priority
Small robotic mower	160–220 mm	60–180 W	0.3–0.9 kg	Runtime and maneuverability
Medium robotic mower	200–280 mm	120–300 W	0.6–1.4 kg	Torque reserve and slope control
Compact cordless push mower	300–380 mm	500–1,000 W	1.5–3.5 kg	Cutting ability and portability
High-output compact mower	360–430 mm	900–1,600 W	2.5–5.0 kg	Dense-grass performance
Small corded mower	320–400 mm	900–1,500 W	2.0–4.5 kg	Continuous cutting at lower system cost

Motor mass should always be judged against the total mower weight. A 1 kg motor may be excessive in a 7 kg robotic mower but reasonable in a 15 kg push mower.

Motor Size Includes the Installation Envelope

Motor size is often described by diameter and body length. However, the complete installation also includes the shaft, bearings, mounting flange, terminals, cables, cooling passages, controller, and protective cover.

A motor body that is 90 mm long may require 125–145 mm of actual installation space after the shaft, connectors, mounting components, and cooling clearance are included. Ignoring these items can create a compact-looking design that is difficult to assemble or repair.

Three installation envelopes should be considered:

• Motor body envelope: The physical motor housing.
• Functional envelope: The housing plus shaft, wiring, fan, mounts, and controller.
• Service envelope: The additional space needed to install, inspect, or replace the motor.

The service envelope is particularly important for commercial production. A prototype may be assembled manually with limited clearance, but the same layout may slow down factory assembly or make field maintenance unnecessarily difficult.

Motor diameter also affects the mower’s internal arrangement. In robotic lawnmowers, the central area is often shared by the blade motor, battery, sensors, charging components, and control electronics. Even a small increase in motor diameter may reduce the available battery volume.

In compact push mowers, excessive motor height can increase the upper housing profile and raise the center of gravity. A shorter but slightly wider motor may sometimes produce a more stable mower, provided it does not interfere with the wheel or grass-discharge path.

Power Density Versus Continuous Performance

High power density allows more output from a smaller and lighter motor. It is important, but not the sole selection criterion.

A very small motor may produce high peak power for a few seconds while offering much less continuous power. This difference matters because grass load is irregular. The blade experiences repeated torque peaks when it enters dense patches, accelerates from rest, or encounters accumulated clippings.

A useful motor specification should separate normal, overload, and protective power levels.

Power Level	Purpose	Example for an 800 W Nominal Motor
Normal operating range	Maintained, relatively dry grass	500–800 W
Short overload range	Dense grass or temporary speed reduction	1,000–1,400 W
Protective limit	Controller reduces or stops output	1,500–1,800 W

These figures are only an illustrative example. The important design principle is that peak wattage should never replace continuous-rating and temperature data.

A slightly larger motor operating at 60–75% of its available capacity may be more reliable and quieter than a smaller motor repeatedly running near its limit. The additional motor mass can be justified when it improves continuous cutting, temperature margin, and service life.

However, unnecessarily large reserve capacity can also be wasteful. A motor designed for extremely dense grass may offer little benefit on a small robotic mower that cuts only a few millimeters of grass during each pass.

Weight Distribution Matters

The position of the motor can affect mower handling more than its absolute mass.

In a push mower, a heavy motor mounted too far forward makes the front difficult to lift during turning. This can increase operator fatigue, especially when mowing around trees, pathways, or garden borders.

If the motor is located too far rearward, the front of the cutting deck may become less stable. Positioning the motor close to the blade and cutting center generally produces more predictable handling.

For robotic lawnmowers, weight distribution influences:

• Wheel traction
• Slope-climbing ability
• Obstacle crossing
• Turning stability
• Front-wheel contact
• Ground pressure

The motor, battery, and drive units should therefore be treated as one mass system.

As an early design target, approximately 55–70% of total robotic mower weight may be placed on the driven wheels. This range is not a universal rule, but it provides a practical starting point for traction testing.

The final distribution should be evaluated on wet grass, uneven ground, soft soil, and slopes. A mower that performs well on a flat workshop floor may behave very differently when one wheel enters a depression or crosses a raised lawn edge.

A centrally located blade motor usually improves balance. However, it may compete with the battery for the best location. Moving the battery toward the drive wheels can improve traction, but excessive rear bias may reduce front-wheel contact and affect steering accuracy.

Motor Weight Can Increase the Entire Power-System Weight

Choosing a larger motor often creates secondary increases in weight. More motor power may require a larger battery, thicker cables, a stronger controller, additional cooling, and chassis reinforcement.

Consider two simplified cordless mower concepts.

Component	Lightweight Concept	Higher-Power Concept
Blade motor	700 W, 2.0 kg	1,200 W, 3.4 kg
Battery	36 V, 5 Ah, 1.8 kg	48 V, 8 Ah, 3.5 kg
Controller and wiring	0.5 kg	0.9 kg
Reinforcement and cooling	0.6 kg	1.3 kg
Total power-system mass	4.9 kg	9.1 kg

In this simplified example, the motor becomes only 1.4 kg heavier, but the complete power system becomes 4.2 kg heavier.

The motor must be assessed as part of the system.The real design question is not “How much does the motor weigh?” but “How much total mower weight does this motor require?”

A mower intended for small, frequently maintained lawns may gain little from the heavier system. The additional cutting capacity may remain unused while carrying, storage, runtime efficiency, and maneuverability become worse.

For compact equipment, avoiding unnecessary system weight is often more valuable than achieving the highest possible rated power.

Blade Diameter, Inertia, and Torque

A wider cutting path normally requires a longer blade, multiple blades, or several small cutting discs. Longer blades increase rotational inertia and may create larger impact loads.

Blade mass alone does not determine inertia. Material located near the blade tips has a greater effect than material located close to the shaft. Blade geometry can therefore reduce motor requirements without reducing the cutting width.

Motor demand can be controlled by:

• Removing unnecessary blade-tip mass
• Maintaining stiffness without excessive blade thickness
• Optimizing cutting-edge length rather than only enlarging the blade
• Selecting a speed that balances cutting quality, noise, and load
• Using several smaller discs when one large blade is difficult to accelerate

A compact mower does not always need the highest possible blade speed. Higher speed can support clean cutting under some conditions, but it also increases air resistance, noise, energy consumption, and impact severity.

The more useful target is stable blade speed under realistic grass load. A mower that maintains moderate speed in dense grass may cut more consistently than one with very high no-load speed but poor torque reserve.

Thermal Capacity Sets the Minimum Practical Size

Motor size is closely connected to heat dissipation. Copper loss, magnetic loss, bearing friction, controller loss, and restricted airflow all generate heat.

Compact mower housings are challenging thermal environments. Grass dust can block cooling openings, moisture limits the use of open ventilation, and sound-insulating covers can trap heat.

Robotic lawnmowers may operate for long periods at moderate load. Compact push mowers often experience shorter but more intense loading, particularly when the operator moves quickly through tall grass.

Prototype testing should include several operating conditions.

Test Condition	Suggested Test Period	Main Purpose
Light, dry grass	30–45 minutes	Establish normal operating temperature
Dense or slightly wet grass	15–25 minutes	Evaluate overload heating
Repeated starts and stops	10–15 cycles	Check acceleration stress

The motor should retain a temperature margin for hot weather, dull blades, partially restricted airflow, manufacturing variation, and gradual bearing wear.

A motor that is 10–20% heavier may be worthwhile when the additional material improves heat capacity and reduces temperature rise. Extra weight is less useful when it only supports a peak output that the mower rarely needs.

Thermal testing should also include the controller and battery. A cool motor does not guarantee a reliable system if the controller repeatedly reaches its current limit or the battery becomes excessively warm.

Direct Drive, Structure, and Noise

Direct drive connects the blade directly to the motor shaft with few transmission components. It reduces parts, maintenance requirements, and mechanical losses.

A geared system may allow the use of a smaller-diameter, higher-speed motor. However, the gears, bearings, lubrication, and gearbox housing add weight, cost, and noise. The gearbox may eliminate much of the original motor-weight saving.

For many compact rotary lawnmowers, direct drive is the more practical arrangement when the motor’s efficient operating speed matches the required blade speed.

Motor mass also affects the mower deck and mounting structure. During a curb drop, transport shock, or rough-ground impact, the motor mount may experience several times the motor’s static weight.

For example, a 3 kg motor could briefly create mounting loads comparable to 9–15 kg during a strong shock event. The exact load depends on acceleration and structural response, but the estimate shows why thin plastic supports may fail even when they easily hold the motor under normal conditions.

Motor mounts should account for:

• Static motor weight
• Starting and stopping torque
• Blade imbalance
• Continuous vibration
• Transportation shock
• Accidental impact
• Thermal expansion

A heavier motor may require metal inserts, thicker ribs, stronger bearings, or additional fasteners. These changes further increase the complete mower weight.

Motor size can also influence sound quality. A small motor operating near its limit may produce greater speed fluctuation and higher-pitched noise. A slightly larger motor running below maximum load can sound smoother.

However, additional mass cannot correct poor rotor balance, weak bearings, an undersized shaft, or an unbalanced blade. Motor size and mechanical quality must be evaluated separately.
