In the realm of medical precision equipment, noise and vibration are critical factors that can significantly impact the functionality, accuracy, and reliability of devices. In particular, medical devices such as diagnostic machines, surgical robots, infusion pumps, and imaging equipment require highly stable and precise operations. Noise and vibration reduction in these systems is essential for ensuring patient comfort, improving diagnostic accuracy, and preventing mechanical wear.

Outrunner BLDC motors have become a go-to solution in addressing these issues due to their unique design, which offers superior efficiency, lower noise, and reduced vibration. In this article, we will explore how outer rotor BLDC motors can help reduce noise and vibration in medical precision equipment. We will also discuss design considerations, advantages, and best practices for achieving optimal motor performance in such sensitive applications.

Understanding the Problem: Noise and Vibration in Medical Equipment

Medical precision equipment must meet strict standards for noise and vibration to ensure both functional efficacy and patient safety. Here are the main causes of noise and vibration:
Mechanical components: Motors, gears, and moving parts can generate vibrations due to mechanical friction and irregular movements.

• Power fluctuations: Variable voltage and current fluctuations can cause motors to operate less smoothly, generating both noise and vibration.
• Motor type: Traditional brushed motors tend to produce more noise and vibration due to the friction between brushes and commutators. This is particularly problematic in medical settings where quiet operation is essential.

The Role of Outer Rotor Brushless DC Motors

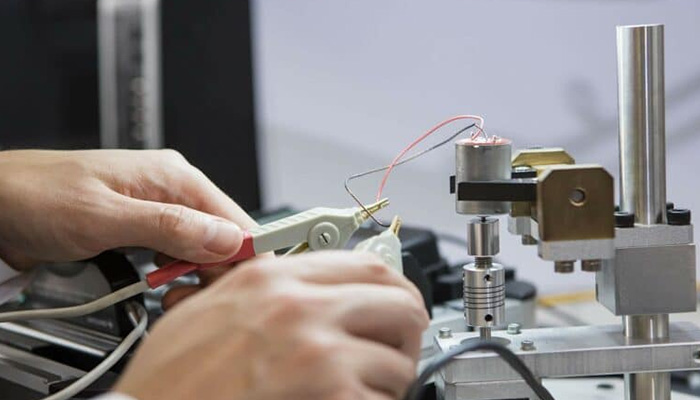

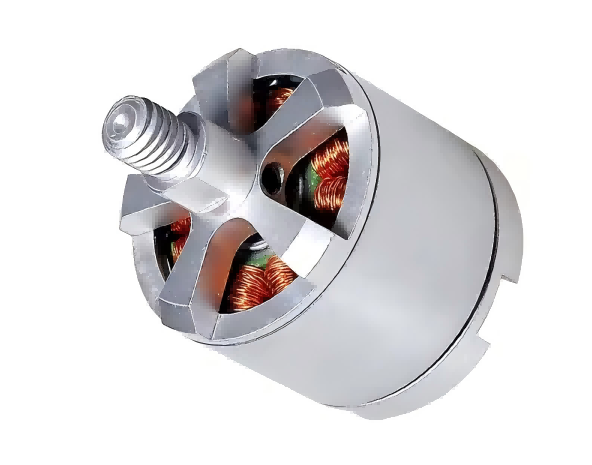

Outer rotor brushless DC motors (also known as outrunner motors) are known for their unique design, where the rotor is positioned outside the stator, unlike inrunner motors where the rotor is inside the stator. This design offers several advantages in terms of reducing both noise and vibration in medical precision equipment.

Key Characteristics of Outer Rotor BLDC Motors:

• Increased torque output: The outer rotor design allows for larger diameters and higher torque at lower speeds, which reduces the need for high-speed operation and consequently lowers vibration levels.
• Smooth operation: BLDC motors don’t have physical brushes that deteriorate or cause friction like conventional brushed motors do. This leads to smoother operation with fewer mechanical vibrations and less noise.
• Efficiency and stability: Outer rotor BLDC motors typically offer higher efficiency, meaning they generate less heat and operate more smoothly with lower electrical noise.

By utilizing outer rotor BLDC motors, manufacturers can significantly reduce the sources of noise and vibration in their medical devices, improving overall performance and ensuring a quieter and more comfortable experience for patients and operators alike.

Noise Reduction through Motor Design and Control

One of the primary advantages of using outer rotor BLDC motors in medical equipment is their ability to minimize noise generation. This can be achieved through several design and control techniques.

a) Electronic Commutation vs. Mechanical Commutation

Traditional brushed motors rely on mechanical commutation, where brushes rub against a commutator, generating electrical noise and mechanical friction. In contrast, BLDC motors utilize electronic commutation, eliminating the need for brushes. This reduction in friction results in much lower mechanical noise and vibrations, which is particularly beneficial in medical equipment where silent operation is critical.

b) Field-Oriented Control (FOC)

Field-oriented control (FOC) is a technique used to optimize the operation of BLDC motors. By controlling the motor’s magnetic field in relation to the rotor position, FOC allows for smoother operation and reduces torque ripple. Torque ripple is a major cause of noise vibration. By minimizing this ripple, FOC helps ensure that the motor runs smoothly and quietly, even at low speeds, which is often required in medical devices like imaging equipment or robotic arms.

Vibration Reduction: Design and Material Considerations

Vibration in motors can result from imbalances in the rotor or irregular magnetic forces during operation. Outer rotor BLDC motors have an inherent advantage in reducing these vibrations due to their larger rotor diameters and lower operating speeds.

a) Rotor and Stator Design

The design of the rotor and stator is crucial for vibration reduction. The rotor’s large diameter in an outer rotor BLDC motor distributes the forces more evenly, leading to smoother rotation. Additionally, using high-quality, precision-balanced rotor materials minimizes any unbalanced forces that can lead to vibration.

b) Use of Dampening Materials

Another effective strategy for reducing vibration is incorporating dampening materials into the motor’s construction.The motor housing might be made of soft materials like silicone or rubber to absorb vibrations and stop them from transferring to nearby equipment.This is particularly useful in medical equipment where excessive vibration can lead to inaccurate measurements or misalignments in robotic systems.

c) Magnetic Field Smoothing

Magnetic field irregularities are another source of vibration in motors. In an outer rotor BLDC motor, the smoothness of the magnetic field can be enhanced by using high-quality permanent magnets, such as rare-earth magnets, and optimizing the number of poles in the rotor and stator. A more uniform magnetic field reduces the torque ripple and minimizes vibration.

Thermal Management for Enhanced Performance

Effective thermal management is critical for reducing noise and vibration in motors. Excessive heat can lead to increased friction and decreased motor efficiency, which in turn can cause higher vibration levels. By ensuring that the motor runs at ideal temperatures, proper heat dissipation lowers noise production and mechanical strain.

a) Heat Dissipation Materials

Outer rotor BLDC motors benefit from advanced materials like aluminum and copper for their housing and windings. These materials enhance heat dissipation due to their excellent conductivity.This reduces the likelihood of thermal expansion, which can lead to mechanical misalignment and additional noise or vibration.

b) Active Cooling Systems

In high-power medical devices, active cooling systems such as fans or liquid cooling can be integrated into the motor design. These systems help maintain a stable temperature, preventing overheating that could otherwise affect motor performance and increase noise.

Case Study: Noise and Vibration Reduction in Robotic Surgery

To illustrate the effectiveness of outer rotor BLDC motors in reducing noise and vibration, consider their application in robotic surgery systems. These systems require extremely precise movements and minimal noise to ensure the safety and comfort of the patient. By using outer rotor BLDC motors, engineers can achieve:

• Reduced noise levels: The elimination of mechanical commutation and smooth operation due to FOC results in a quieter motor, crucial for maintaining a sterile and calm operating environment.
• Reduced vibration: The low torque ripple and optimized rotor design significantly reduce vibration, ensuring that robotic arms move with high precision without causing discomfort or interference with surgical procedures.

The integration of outer rotor BLDC motors in robotic surgery has led to improvements in both patient outcomes and system reliability.

Data Analysis: Noise and Vibration Comparison

Below is a comparative chart illustrating the difference in noise and vibration levels between outer rotor BLDC motors and traditional brushed motors. The measurements were taken at 50% load across multiple devices commonly used in medical equipment.

Motor Type	Noise Level (dB)	Vibration Level (mm/s²)
Traditional Brushed DC	68 dB	0.6 mm/s²
Outer Rotor BLDC (Low Speed)	55 dB	0.2 mm/s²
Outer Rotor BLDC (High Efficiency)	50 dB	0.15 mm/s²

As shown in the table, outer rotor BLDC motors provide significantly lower noise and vibration levels compared to traditional brushed DC motors, particularly at high efficiency and low-speed operation.

Conclusion

Outer rotor BLDC motors offer a compelling solution for reducing noise and vibration in medical precision equipment. Their design advantages, such as smoother operation, reduced torque ripple, and effective thermal management, make them ideal for sensitive applications like robotic surgery, diagnostic equipment, and imaging systems. By optimizing motor design and employing advanced control techniques like FOC, manufacturers can achieve a significant reduction in noise and vibration, leading to improved performance, enhanced patient comfort, and higher overall system reliability.

By adopting these advanced motor technologies, the medical industry can continue to push the boundaries of precision and safety while ensuring that the equipment remains as quiet and non-invasive as possible.
