Electric Motor for Wheelchair
GIAN delivers customized electric wheelchair motor solutions based on voltage, torque, speed, shaft design, gearbox ratio, and mounting requirements, ensuring precise performance for different wheelchair applications.
- Customized Motor Voltage Configurations
- Optimized Gear Ratio Adjustment
- Customized Shaft and Mounting Solutions
- Flexible Connector Options
- Comprehensive Performance Testing

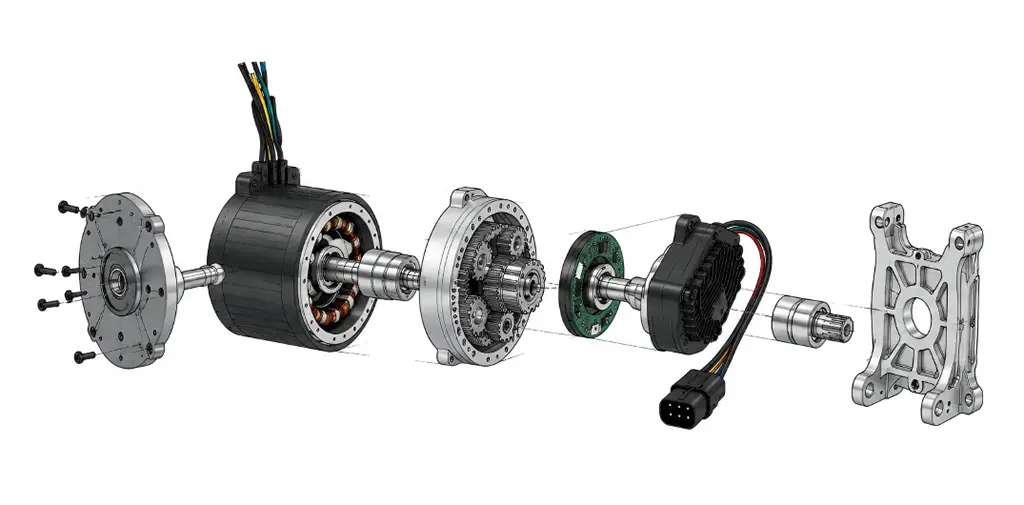

Components of Electric Wheelchair Motor System
- Motor Body: Converts electrical energy into mechanical power to drive the wheelchair.
- Gearbox: Increases output torque and improves climbing ability under different loads.
- Encoder or Sensor: Provides speed and position feedback for accurate motor control.
- Controller Interface: Connects with the control system to regulate speed and movement.
- Output Shaft: Transfers motor torque to the wheelchair wheels.
- Mounting Structure: Supports stable mounting and proper fit within the wheelchair frame.
What Types of Electric Wheelchair Motor Can We Provide?
Wheelchair Gear Motor
- Wheelchair gear motors combine a motor and gearbox to deliver high torque and stable low-speed operation for electric wheelchairs.
- High torque for slopes and heavy loads
- Compact integrated gearbox design
- Voltage range: 12V–36V
- Power range: 100W–300W
- Suitable for standard electric wheelchairs
Wheelchair Drive Motor
- Wheelchair drive motors integrate the motor, gearbox, and mounting structure to provide direct and reliable wheel drive performance.
- Integrated drive solution
- Smooth power transmission
- Custom shaft and mounting options
- Torque range: 10–50 Nm
- Suitable for power and heavy-duty wheelchairs
Brushless DC Wheelchair Motor
- BLDC wheelchair motors deliver efficient, silent, and durable operation with lower maintenance demands.
- High efficiency and low noise
- Longer service life
- Voltage range: 24V–48V
- Efficiency: 80%–90%
- Suitable for premium mobility systems
Hub Motor Electric Wheelchair
- Integrates the motor into the wheel hub for compact, efficient, and simplified drive performance.
- Compact integrated structure
- Voltage range: 24V–48V
- Efficiency: 85%–92%
- Rated power: 100W–500W per wheel
- Suitable for folding and portable mobility systems
Motor Position in Electric Wheelchairs

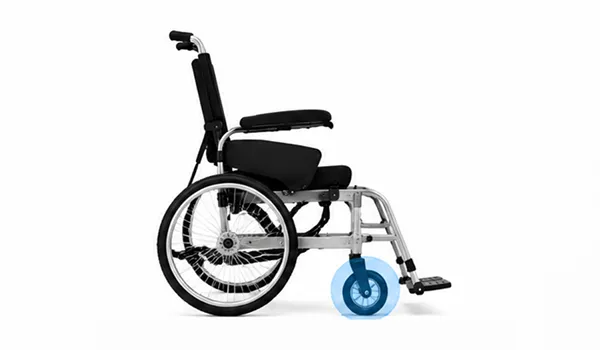

Front-wheel
- Motors are installed near the front driving wheels to provide direct power output.
- Delivers higher torque for climbing slopes and overcoming outdoor obstacles.
- Suitable for outdoor mobility, uneven roads, and all-terrain applications.

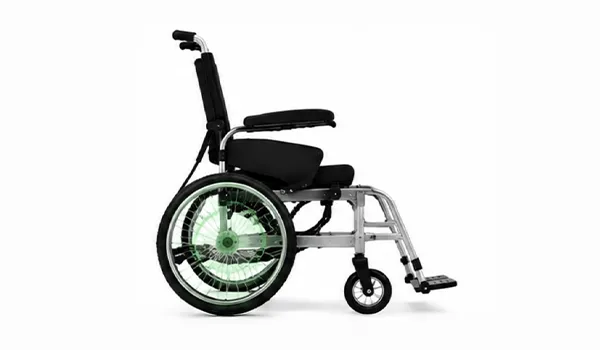

Mid-wheel
- Motors are installed on each side of the central drive wheels.
- Provides the smallest turning radius and excellent indoor maneuverability.
- Suitable for hospitals, homes, and limited-space environments.

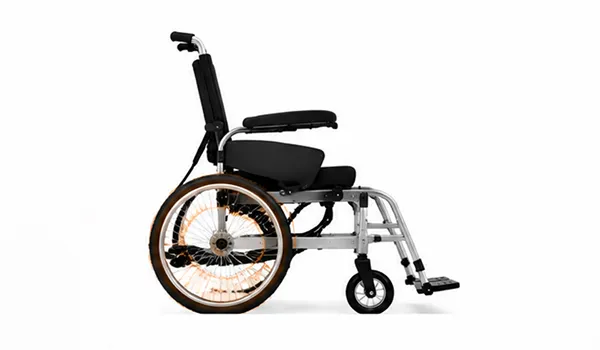

Rear-wheel
- Motors are installed near the rear wheels to deliver stable driving performance.
- Provides better straight-line stability and higher travel speed.
- Suitable for outdoor transportation and long-distance mobility.
From 0 to N - Full Motor Solutions
Custom Motors for Different Types of Electric Wheelchairs

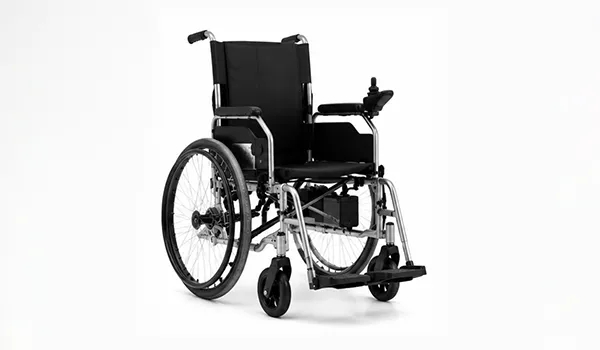

Standard Electric Wheelchair
- Uses compact geared DC motors or BLDC motors with moderate torque output. Motors are usually installed near the rear drive wheels for stable daily mobility.

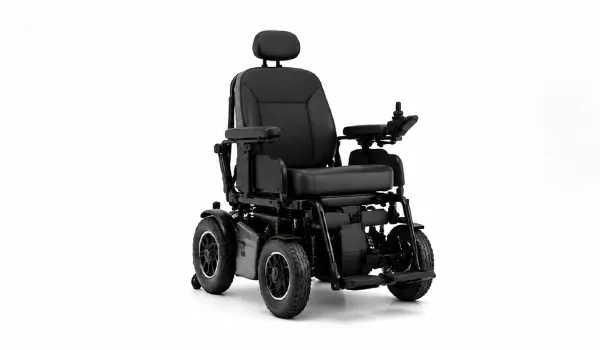

Heavy-duty Electric Wheelchair
- Requires high-torque geared motors or powerful BLDC motors to support heavier loads. Motors are typically mounted on both drive wheels for stronger traction.

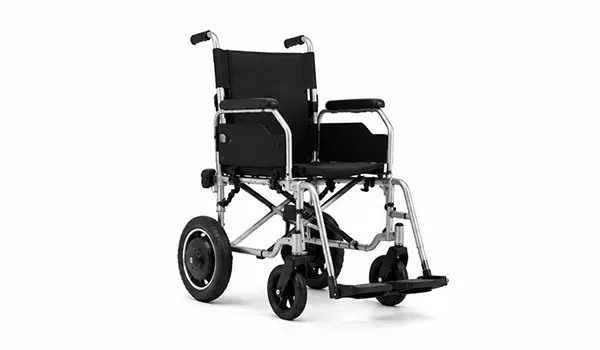

Folding Electric Wheelchair
- Features hub motors integrated into the wheels, offering a compact structure, lightweight design, and easy folding without complex transmission parts.
Electric Wheelchair Motor Manufacturing
We provide complete electric wheelchair motor manufacturing services, covering design, machining, assembly, testing, and mass production to ensure reliable motor performance.
Motor Design
Design tailored motors according to voltage, torque, speed, and installation demands.
CNC Machining
Produce accurate motor housings, shafts, and components with strict dimensional control.
Winding Process
Apply optimized winding designs to improve efficiency, torque output, and thermal performance.
Motor Assembly
Integrate motor components, gear systems, and drive parts for stable operation.
Performance Testing
Verify torque, efficiency, noise, temperature rise, and durability before delivery.
Quality Inspection
Ensure dimensional accuracy and consistent performance before delivery.
FAQ
What type of motor is used in an electric wheelchair?
Electric wheelchairs commonly use DC geared motors or BLDC motors. The motor type depends on torque requirements, wheelchair structure, and application conditions.
Where is the motor installed on an electric wheelchair?
Motors are usually installed near the drive wheels. Folding wheelchairs often use hub motors integrated directly into the wheels for a compact design.
Can you customize motors for different electric wheelchair designs?
Yes. We customize motor voltage, power, torque, speed, shaft structure, and mounting design according to specific wheelchair requirements.
Are BLDC motors suitable for electric wheelchairs?
Yes. BLDC motors provide high efficiency, low noise, and long service life, making them suitable for premium and lightweight wheelchair systems.
What factors affect wheelchair motor selection?
Key factors include wheelchair weight, load capacity, driving speed, climbing ability, battery voltage, installation space, and operating environment.
How much torque does an electric wheelchair motor need?
The required torque depends on wheelchair type and usage. Standard models need moderate torque, while heavy-duty outdoor wheelchairs require higher torque output.
Do you provide electric wheelchair motor prototypes and mass production?
Yes. We support the complete process from requirement analysis and prototype manufacturing to performance testing and mass production.
