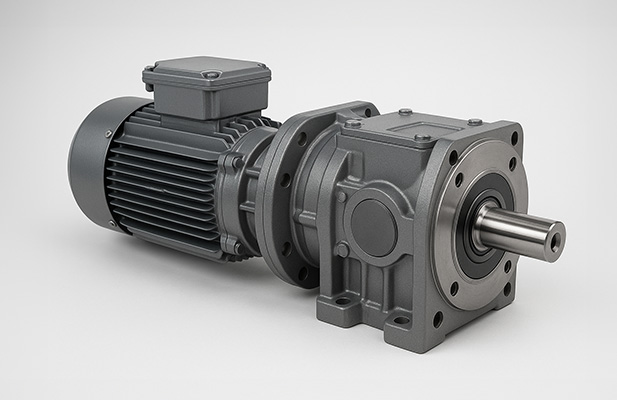

Gear motors have long served as indispensable components in modern mechanical systems. From conveyor belts in factories to robotic arms in assembly lines, they power countless applications with a blend of torque, speed control, and precision.
Today, as automation technologies evolve and demand for smarter, more efficient systems increases, gear motor design must go beyond traditional approaches. Engineers now face new challenges that require careful planning and informed decision-making across multiple parameters—from power and torque calculations to service life, environmental suitability, and noise control.
Power and Gear Reduction Ratio: Laying the Foundation
The first step in designing a gear motor is to define the required power and gear reduction ratio. These two elements will fundamentally shape the performance and suitability of the gear motor for its intended task.
Start by identifying the input and output shaft speeds required by the application. Often, machines demand variable movements, making it crucial to find a speed range that offers flexibility. For this reason, the gear reduction ratio becomes a key parameter. Once the desired output speed is determined, the reducer can be selected accordingly, serving as the core around which the rest of the design is built.
After establishing speed parameters, it’s time to calculate the necessary mechanical power. This involves understanding the torque and speed required at the output shaft and then working backward to determine the input power demand. Consulting with a gear motor manufacturer or supplier can help refine these values to ensure accurate sizing and avoid inefficiencies or mechanical failures down the line.
Efficiency: Managing Energy Loss and Thermal Impact
Efficiency is one of the most critical considerations in gear motor design. Systems for cooling and lubrication increase efficiency by lowering friction and avoiding excessive heat buildup. In any mechanical transmission system, some energy is inevitably lost, typically in the form of heat due to friction between gears and within bearings.
High-efficiency gear motors are essential for reducing energy consumption, improving system performance, and lowering long-term operational costs. Understanding how gear types and operating conditions impact energy loss is crucial:
- Low-speed gears often operate at reduced efficiency and provide less torque during start-up and acceleration.
- Helical gears usually offer higher efficiencies than spur gears due to their smoother meshing and reduced backlash.
- Systems for cooling and lubrication increase efficiency by lowering friction and avoiding excessive heat buildup.
When designing a gear motor, factor in the operational duty cycle and load variations to better estimate efficiency losses and select suitable materials and thermal management strategies.
Starts, Stops, and Service Factor: Accounting for Load Variability
Unlike continuous systems, many machines operate with frequent starts and stops, varying loads, or shifting speeds. These changes significantly affect the gear motor’s mechanical stress and must be considered early in the design phase.
When motors accelerate a system from standstill, they must temporarily produce torque much higher than their nominal operating torque. Similarly, systems that experience frequent direction reversals or torque spikes require gear motors that can tolerate such fluctuations without premature wear.
The service factor (SF) is a numerical multiplier used to account for these variables. For example, in a simple setup where an electric motor runs for 8 hours a day with less than 10 starts per hour and minimal torque variation, the service factor might be 1.0. However, applications with higher demand may require an SF of 1.25 or more.
Manufacturers typically provide service factor charts based on:
- Motor type (e.g., AC, stepper, or servo motor)
- Number of starts per hour
- Daily operating hours
- Load variability and type of application
Correctly calculating and applying the service factor ensures that the gear motor selected won’t be undersized for real-world use, thereby improving reliability and safety.
Noise and Vibration: Ensuring Operational Comfort and Stability
In the pursuit of high performance, designers must not overlook noise and vibration levels. Gear motors operating in commercial environments, medical devices, or precision machinery are often subject to strict acoustic requirements.
Gear geometry plays a large role in determining operational noise:
- Helical gears are typically quieter than spur gears. Their teeth mesh progressively and stay in contact longer, leading to smoother and quieter performance.
- Spur gears, though simpler and more cost-effective, generate more noise due to their abrupt tooth engagement.
- Bevel and worm gears, depending on application and speed, can introduce additional complexities in vibration and sound.
Beyond noise, shock loading and vibration resistance are important for mechanical integrity. In high-impact environments or where mechanical resonance may occur, shock-resistant gear types (again, helical gears are favorable) and solid gearbox housing design can prolong equipment life and prevent failures.
Noise suppression is also aided by:
- Precision manufacturing to reduce gear backlash
- Proper alignment and shaft balancing
- Quality materials that dampen vibrations
If noise is a major concern, choosing gear motors with integrated damping features and low-backlash configurations is advisable.
Longevity and Maintenance: Designing for the Future
The service life of a gear motor is influenced by several factors, including speed, torque, duty cycle, material selection, and environmental conditions. As applications become more advanced and downtime becomes more costly, ensuring long-term reliability is essential.
Factors affecting lifespan include:
- Material durability: Hardened steel and alloy gears can withstand heavy loads and reduce wear.
- Surface treatment: Methods such as nitriding or carburizing improve surface hardness and increase resistance to fatigue.
- Lubrication: Proper lubrication minimizes friction and thermal buildup, a major cause of gear failure.
- Bearing selection: High-quality rolling bearings reduce friction and enhance the efficiency and durability of the gear motor.
Environmental exposure should not be underestimated. Conditions such as extreme humidity, salt-laden air, or high dust levels can cause corrosion, clog lubrication channels, and reduce component integrity. Sealing the housing and selecting corrosion-resistant materials is vital in such settings.
Additionally, new trends are emerging in predictive maintenance using smart sensors. Modern gear motors may incorporate condition-monitoring systems to track temperature, vibration, or load in real time, enabling preventive action before failures occur.
Motor Integration: Choosing the Right Drive System
The new generation of gear motors is often paired with stepper motors, servo motors, or brushless DC motors, each offering specific benefits depending on the application.
- Stepper motors excel at delivering precise, incremental motion, making them a popular choice in CNC machines and 3D printers.
- Servo motors offer high dynamic performance and closed-loop control, making them suitable for robotics and automation systems.
- BLDC motors combine efficiency and low maintenance, making them suitable for continuous operations with high power density.
Choosing the right drive system involves matching the torque and speed characteristics of the gear motor with the dynamic performance requirements of the application. Close integration of motor and gearbox design ensures better thermal management, tighter control, and simplified installation.
Customization and Modularity: Meeting Unique Needs
Modern applications often demand flexibility and tailor-made solutions. Modular gear motor designs allow components to be mixed and matched for different torque ratings, mounting configurations, and operating conditions.
Features that support design adaptability include:
- Multiple mounting orientations (horizontal, vertical, flange, foot)
- Interchangeable gear stages
- Built-in encoder feedback
- Customizable shaft dimensions or gear ratios
Modular systems reduce inventory costs, streamline maintenance, and allow end-users to swap components without replacing the entire assembly.
Designing the next generation of gear motors is about more than choosing the right gear ratio or material—it’s about understanding how every component and operating condition affects long-term performance, reliability, and efficiency.
By paying close attention to power and speed requirements, mechanical efficiency, load variability, noise levels, expected service life, and integration with advanced motor types, designers can deliver gear motors that meet the rigorous demands of modern industry. Furthermore, adopting modular approaches and condition-monitoring technologies sets the foundation for scalable, smart gear motor systems ready to drive the machines of the future.
