Rotary motion control lies at the heart of modern automation—powering the precise movement of robotic arms, conveyors, CNC machines, and countless other applications. Traditionally, geared servo motors have been the go-to solution for achieving controlled rotary movement in such systems. Their versatility, relative affordability, and ability to adapt torque and speed have earned them a central place in industrial machinery.

However, with the rise of advanced alternatives like direct-drive rotary servo motors and closed-loop systems, engineers are re-evaluating the role of geared motors in modern motion control. Are geared servo motors still the optimal solution? Or have newer technologies surpassed them in performance and reliability?

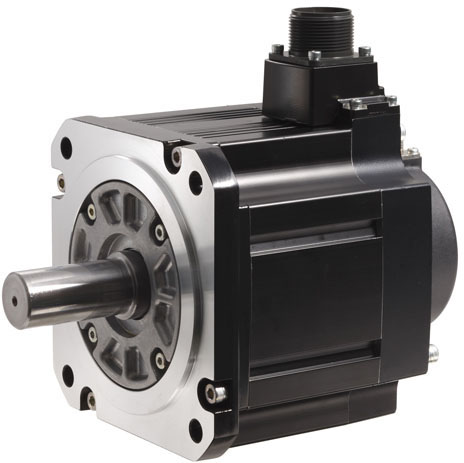

Geared Servo Motors

The Value Proposition of Geared Servo Motors

Geared servo motors combine a traditional rotary servo motor with a gear reducer, allowing them to deliver higher torque at lower speeds while maintaining precise control over position, speed, and torque.

Key Advantages:

  • Torque Amplification: Gearboxes multiply the torque of the motor, enabling a smaller motor to drive a larger load.
  • Speed Matching: By reducing motor speed, gearboxes help match the servo motor’s optimal operating speed to the application’s requirements.
  • Mechanical Advantage: Applications requiring high holding torque (like vertical loads or lifting mechanisms) benefit from the added mechanical resistance.

Geared servo motors are used extensively in applications like:

  • Packaging machinery
  • Conveyor systems
  • Automated assembly lines
  • Winding and tensioning applications
  • Robotics and gantries with joint torque constraints

They’ve been favored for decades thanks to the ease of integration and cost-effectiveness, especially where speed reduction and torque amplification are critical.

Understanding the Drawbacks: Backlash and Stiffness

Despite their ubiquity, geared servo motors present challenges that can degrade servo performance—most notably backlash and limited torsional stiffness.

What Is Backlash?

Backlash refers to the mechanical “slack” between gear teeth or other transmission components. It creates a lag between the motor’s movement and the load’s response. When the direction of motion changes, the motor must first take up this slack before effectively transferring torque to the load.

This introduces:

  • Positional uncertainty: Encoder readings reflect motor shaft position, not the load position.
  • Coupling/decoupling behavior: The load and motor temporarily disconnect and reconnect during direction changes, impacting control precision.
  • Tuning difficulties: The control system struggles to optimize performance as the mechanical behavior introduces noise and lag.

Backlash is typically measured in arc minutes (1 arc minute = 1/60 of a degree). Even high-precision gearboxes can exhibit backlash in the range of 3 to 9 arc minutes.

What Is Torsional Stiffness?

Torsional stiffness is the resistance of the system (shaft, gear, coupling) to twisting under torque. A perfectly stiff system would have zero deflection, transmitting torque instantly and precisely. In practice, all materials deform slightly under load, and mechanical couplings act like torsion springs.

Low stiffness leads to:

  • Energy storage and release: Like a compressed spring, energy builds up and then releases, causing oscillation.
  • Resonance: Certain speeds can cause the system to vibrate uncontrollably.
  • Slower response: The controller must limit gain settings to avoid overshooting or instability.

Combined with backlash, insufficient torsional stiffness introduces mechanical elasticity that complicates motion control and lengthens system settling times.

Direct-Drive Rotary Servo Motors: A Better Solution?

In contrast to geared solutions, direct-drive rotary servo motors mount the load directly to the motor’s rotor without a gearbox or transmission system.

Performance Advantages:

  • Zero Backlash: No gears or belts means no motion lag during direction reversals.
  • High Torsional Stiffness: The short, rigid mechanical path ensures minimal deflection under torque.
  • Smooth Response: The motor reacts instantly to controller commands, enabling high tuning gains and rapid settling.
  • Minimal Maintenance: No gear lubrication, backlash adjustment, or mechanical wear.

Direct-drive motors are designed with high pole counts and custom windings to deliver high torque at low speeds, matching the gear motor’s function without needing a gearbox.

Where They Shine:

  • Precision positioning systems (e.g., semiconductor manufacturing)
  • Optical systems and inspection equipment
  • Large rotary tables and indexers
  • Robotics requiring high dynamic response
  • Servo presses and machine tools

The Cost Factor

Despite their performance, direct-drive motors come at a premium price. The high magnetic material content (often rare-earth magnets), tight manufacturing tolerances, and custom design drive up cost. Additionally, they tend to be bulkier than geared motors of equivalent torque capacity.

That said, when you factor in:

  • Reduced maintenance
  • Longer lifespan
  • No mechanical wear
  • Improved performance
  • Elimination of encoder correction techniques

The long-term ROI of direct-drive systems can outweigh the initial investment, especially in high-performance applications.

The Middle Ground: Closed-Loop Geared Systems with Load Encoders

To bridge the performance gap without fully embracing direct drive, some systems use a secondary encoder at the load side, forming a fully closed-loop control system.

This configuration:

  • Compensates for backlash and compliance by measuring actual load position.
  • Enables more accurate control than relying solely on motor-side feedback.
  • Masks mechanical lag through algorithmic corrections.

However, this introduces:

  • Increased system complexity: Two encoders, extra wiring, signal conditioning.
  • Higher cost: Additional components, calibration, and integration.
  • No elimination of mechanical issues: Backlash and compliance still physically exist.

These systems are effective when direct-drive is cost-prohibitive, but geared motors alone are insufficient for required precision.

Comparing Configurations: Geared vs. Direct Drive vs. Closed Loop

Feature Geared Servo Motor Direct Drive Servo Motor Geared w/ Load Encoder
Backlash Moderate (3–9 arc min) Zero Compensated (not eliminated)
Torsional Stiffness Low to Moderate High Low to Moderate
Position Accuracy Moderate High High
Speed/Torque Matching Excellent (via gearbox) Good (via windings) Excellent
System Complexity Low Medium High
Maintenance Moderate Low High
Cost Low to Medium High Medium to High
Best Application Fit General industrial use High-precision tasks Retrofits or tight budgets

Key Considerations When Choosing a Rotary Motion Solution

When determining which rotary motion control technology to use, engineers must weigh multiple factors:

  • Required Precision: Is sub-arcminute accuracy critical?
  • Load Inertia: High-inertia loads benefit from stiff, backlash-free systems.
  • Cycle Time and Speed: Faster systems need better response and tuning.
  • Budget Constraints: Gear motors win on upfront cost, but not long-term ROI.
  • Maintenance Tolerance: Gear systems wear; direct drives don’t.
  • Installation Space: Direct drives can be large and may not fit existing footprints.

Which Is the Best Choice?

There is no one-size-fits-all answer, but a few clear guidelines emerge:

  • For general industrial automation with modest precision needs, geared servo motors remain a solid, cost-effective choice. They provide enough flexibility and torque adaptation for a wide range of machines.
  • For high-performance applications, especially those requiring zero backlash, fast response, and fine resolution, direct-drive rotary servo motors are the superior technology, offering unmatched motion control with reduced system complexity (albeit at a higher cost).
  • For legacy systems or mid-tier applications, where cost sensitivity exists but improved accuracy is necessary, closed-loop geared systems with load-side feedback can offer a practical compromise.

Ultimately, the decision hinges on your application’s specific performance needs, budget, and lifecycle expectations. While geared servo motors remain valuable tools in the motion control toolbox, advancements in motor design have introduced better solutions, particularly for applications where precision and responsiveness are paramount.
So, are geared servo motors the best? In many cases, yes. But are they always the best? No—direct drive and closed-loop solutions are redefining the possibilities of rotary motion control for the next generation of automation.
